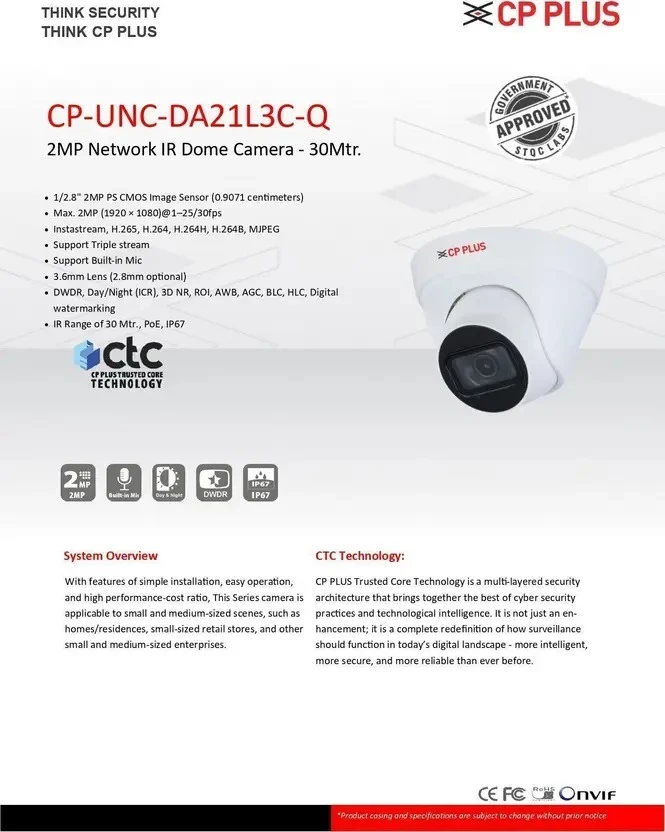

CP PLUS 2MP Network IR Dome Camera - 30Mtr.(CP-UNC-DA21L3C-Q) Security Camera (

(0) 0 Reviews 0 Orders 0 Wish listed

₹854.00

Quantity :

Total price :

(Tax : )

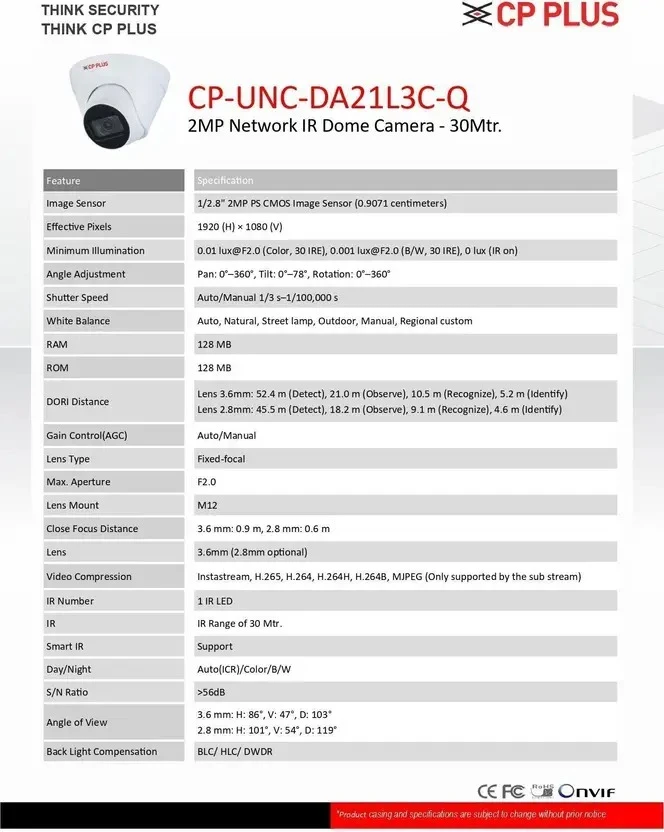

Specifications

Warranty

Power And Connectivity Features

Network Interface Type	Ethernet RJ-45 (10/100 Base-T)
Number of Ethernet Ports	1
Audio Interface	G.711a, G.711Mu, PCM, G.726, AAC, Bit Rate H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps, Bit Rate Control CBR/VBR
Other Connectivity Features	Protocol FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Power Requirement	12 VDC/PoE (802.3af)
Other Power Features	Power Consumption Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)

General

Sales Package	1X home security camera
Model Number	CP-UNC-DA21L3C-Q
Number of Channels	1
Camera Type	CCTV Security Camera
Video Output	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Video Recording Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Video Recording Frame Rate	Main stream: 2MP (1920 × 1080)@1–25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps

Additional Features

Alarm Action	Human Body Detection Support the classification and accurate detection of human & Motor Vehicle
Mobile Compatibility	yes
Application Support	Mobile Software: iCMOB, gCMOB, CMS Software: KVMS Pro Lite
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F) degree C
Weather Durability Standards	IP67
Other Convenience Features	Cyber Security AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot, Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Material	Plastic
Model Name	2MP Network IR Dome Camera - 30Mtr.(CP-UNC-DA21L3C-Q)
Color	White
Lens Size	3.6 mm
Mounting Type	Wall Mount
Other Features	Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)

Dimensions

Product Details

Video Formats	PAL/NTSC
Recording Formats	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Display Frame Rate	25/30fps
Record Modes	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Other Video Features	DORI Distance Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify), Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Image Sensor	1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
Shutter Type	Auto/Manual 1/3 s–1/100,000 s
Image Resolution	1920 (H) × 1080 (V)
IR Distance	30 m
Number of IR LEDs	1
Other Camera and Imaging Features	White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
HDD Available	No
Other Performance Features	RAM 128 MB, ROM 128 MB
Compatible Devices	PC/Laptop
Power Source	DC
Remote Connectivity	IP Lan Cable Cloud
Remote Pan & Tilt	Pan & Tilt
Storage Type	HDD
USB Port Present	No
Horizontal View Range	30 m
Camera Resolution	2 mp
